IPM2 Portable with IP Camera
IPM2 Portable

The IPM2 Portable unit is ideal for body-worn or other mobile applications where it is necessary to connect to an IP network and be able to transfer IP video.  The unit can be supplied with an internal rechargeable battery which provides up to 2 hours or 5 hours of continuous operation.



Features



• Compact design

• Easily integrated into existing or new equipment

• Up to 20 Mb/s real ethnernet throughput

• Range 1kM+ LOS using dipole antennas

• Point to Point/Multipoint/Repeater operating modes

• Hardware-based 128/256-bit AES encryption *

• Packet prioritisation

• Rechargeable battery support

• RSSI indication mode

• Serial console port

• Low  power consumption

• Direct connection for IP cameras

• Automatic config and connect





IPM2 Portable Unit
IPM2 Portable Unit
IPM2 Portable Unit

IPM2 Portable

Support

The System Configurator allows remote viewing and management of all devices in the network

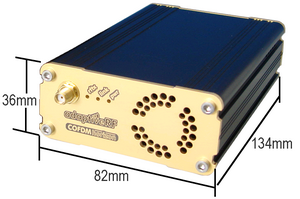

WEIGHT WITHOUT BATTERY = 300g

WEIGHT WITH BATTERY = 570g

* Encryption support is subject to Export restrictions
